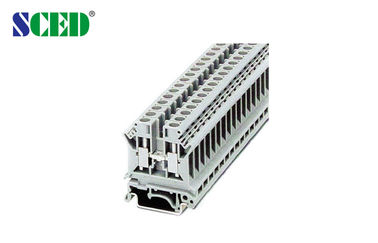

600V 50A 소음 레일을 설치하는 끝 구획, 전기를 위한 연결관을 통해서 8.2mm 급식

Description                    Color

Type

Terminal                        Grey

TR-6N

End Cover                      Grey


D-TR-3/16

Fixed Bridge


FBI 10-8        Imax: 57A

Insertion Bridge


EB 10-8        Imax: 57A

Separating Plate


TS-K

Partition Plate


ATP-TR

Zack Strip                                                  White

ZB8

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                                               mm

8.2/42.5/2

Height (U35: 7.5/U35: 15G 32)                 mm

47/54.5/52

Screw / Torque                                         Nm

M4 / 1.5-1.8

Stripping Length                                       mm

10

IEC Technical Data

Max. Load Current / Cross Section         A / mm²

57 / 10

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ
